SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Hign-concerned Chemical: None

Origin: Mainland China

Function:

Designed torebuild the leaked device on outboard engine, hydraulic trim and tilt unit

Used to remove/ install the Trim and Tilt Caps without damage it and the steering cylinder

Feature:

Ultra High Strength steel brings minimum 180 ft-lbs proof strength. Replaceable Pins are available.

Also compatible with SeaStar Hydraulic Steering ends caps. If looking at a specific application measure the pin spacing and diameter!

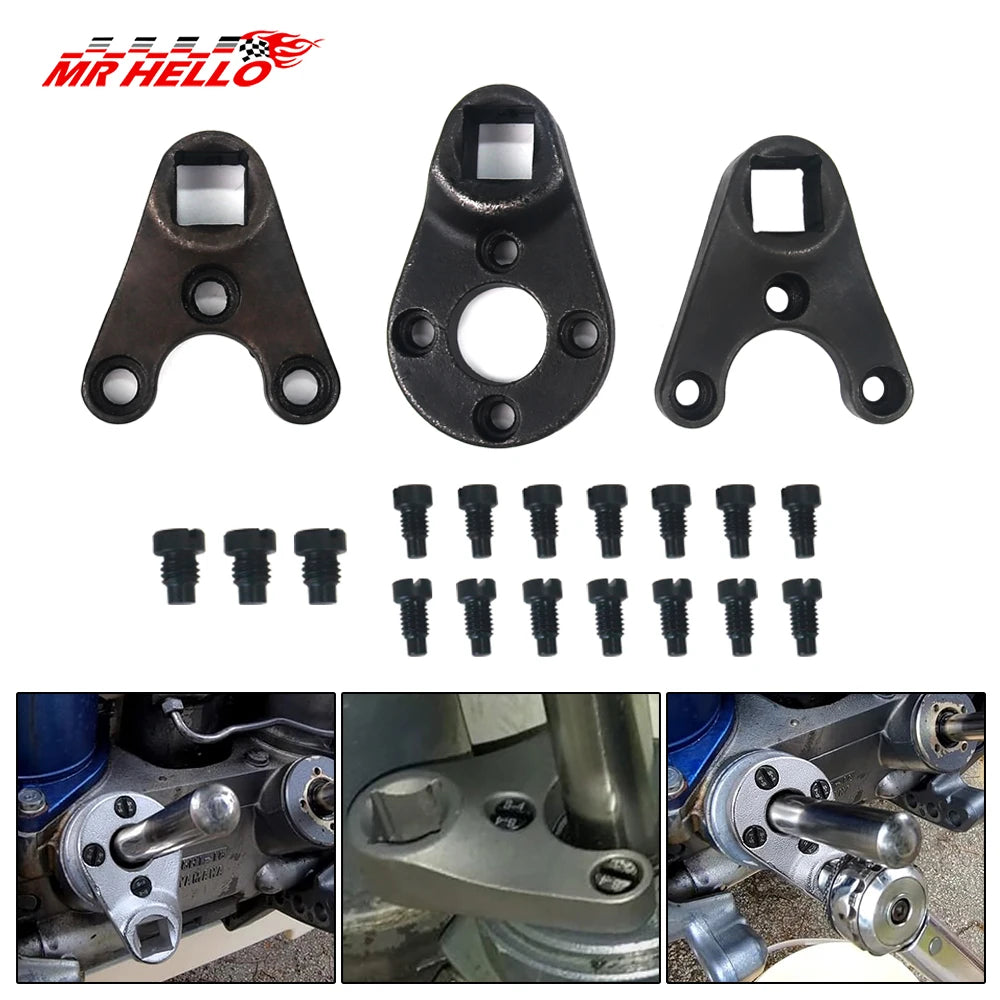

Trim and Tilt hydraulic pin wrench, designed to safely, quickly and easily remove trim or steering caps without damage. Help to better resolving leaking issues.

Operate easily, only makes both pin line up with the hole and insert, then work with 1/2; breaker bar.

Specification & Application:

• MT0004

  Pins Size: S-4mm

  MIN Pin Strength: 180 ft-lb

  Tilt Pin Wrench: 1/2; socket drive

  Equivalent for Yamaha Factory Toosl: YB-06175-2B

  Fitment:

  All for SeaStar Steering Cylinders

  Trim and Tilt caps for ALL Four Stroke V6 (F200-F300)(3.3L, 4.2L)

  Trim and Tilt Caps for 2 strokes (225-300hp)(Non for VMAX)

  Tilt Cap ONLY for 2011-Current F150

• MT0006

  Pins Size: S-4mm/4.5mm

  MIN Pin Strength: 180 ft-lb

  Tilt Pin Wrench: 1/2; socket drive

  Equivalent for Yamaha Factory Toosl: MT0006 - YB-06175-1A

  Fitment:

  Trim Caps for ALL SHOWA manufactured Trim/Tilt Units

  Trim Caps for Yamaha F115-F150/ for ALL Yamaha I4 2.8L (F175-F200)

  Trim Caps for Yamaha 2-Strokes (115-225hp)/ for ALL Yamaha VMAX

  Trim Caps for All Suzuki Honda Johnson Evinrude

• MT0009

  Pins Size: L-6mm

  MIN Pin Strength: 200 ft-lb

  Tilt Pin Wrench: 1/2; socket drive

  Equivalent for Yamaha Factory Tools: YB-06548

  Fitment:

  Tilt Cap for ALL SHOWA manufactured Trim/Tilt Units

  Tilt Cap for Yamaha F115-F150 (2004-2010)/ for ALL Yamaha I4 2.8L (F175-F200)

  Tilt Cap for Yamaha 2-Strokes (115-225hp)/ for ALL Yamaha VMAX

  Tilt Cap for All Suzuki Honda Johnson Evinrude

Package Included:

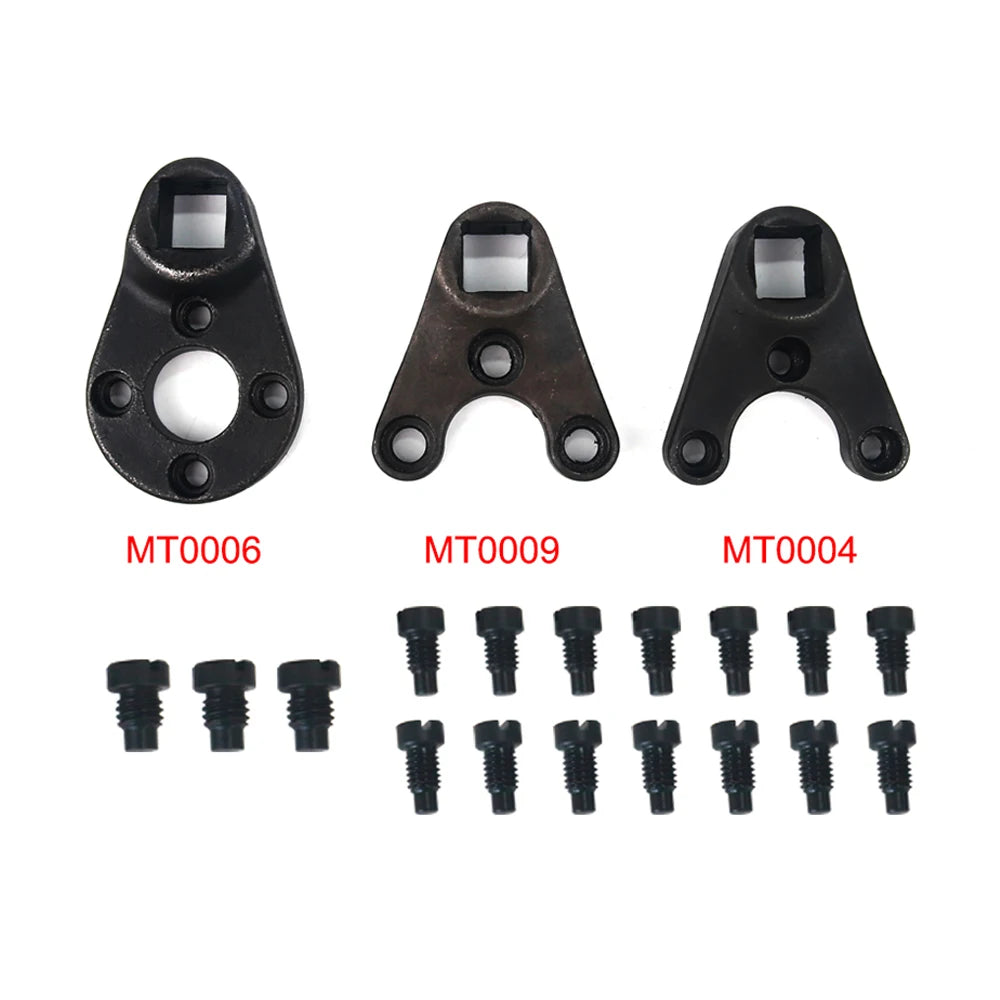

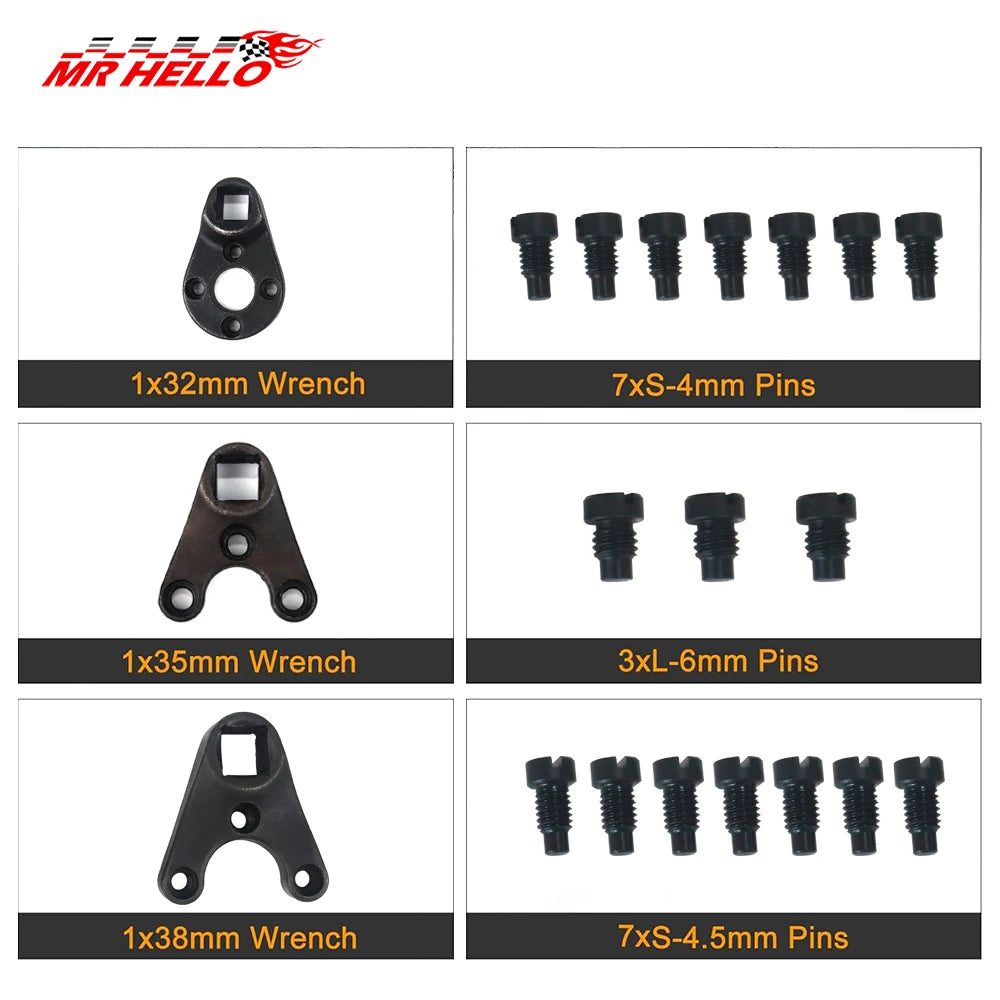

Three of 1/2; socket drive, Pin Wrench with size of MT0004, MT0006 and MT0009

Note:

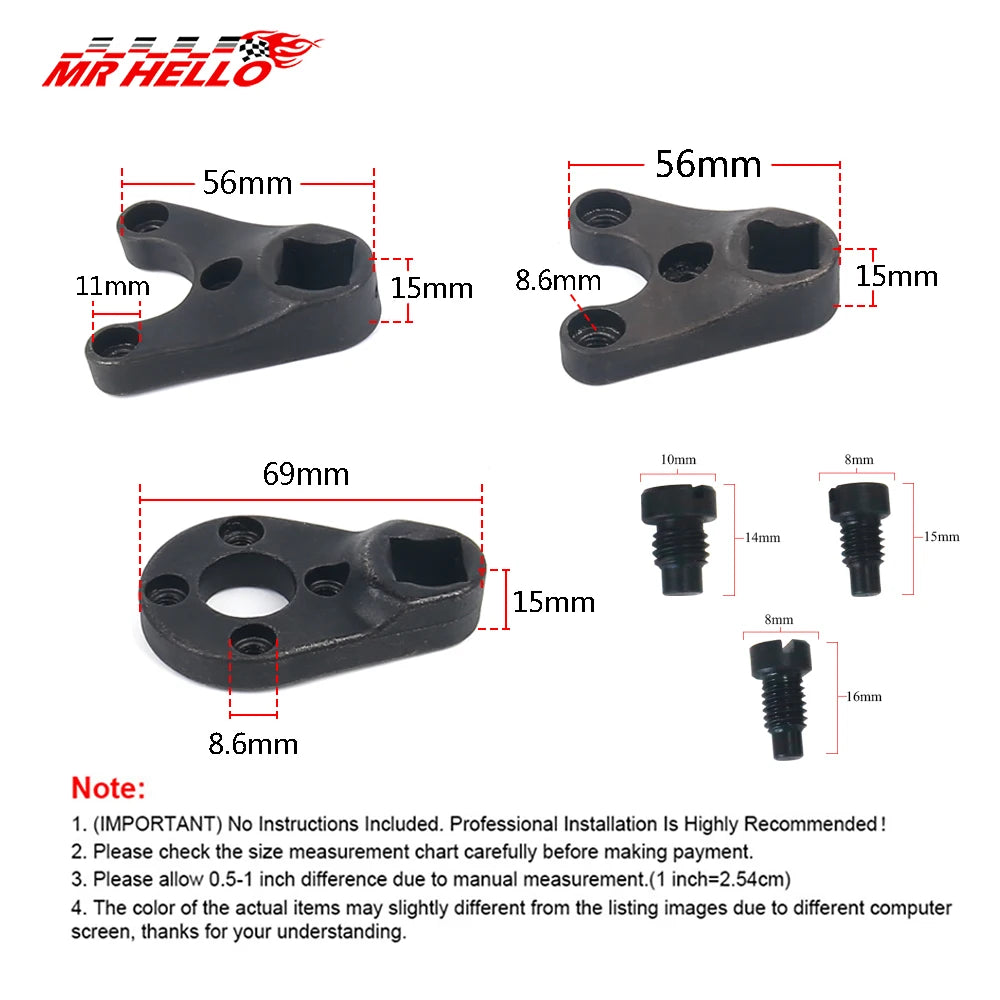

1. Please allow difference due to manual measurement and slight color variation for different display setting.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
